Commercial Heating Systems

Carbon Steel Heating Buffer Vessels

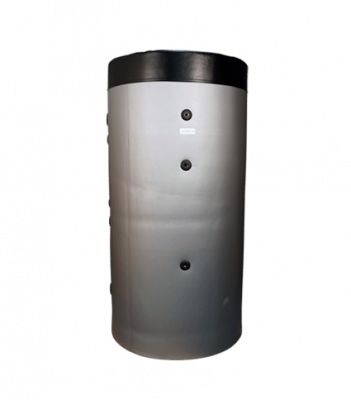

MSS: Carbon Steel Buffer Vessels

The Adveco MSS range of carbon steel primary system buffer vessels has been carefully designed to fit any heating application that requires an inertia tank or energy storage vessel.

The MSS range features numerous high-, mid-, and low-level connections to ensure compatibility with almost any heating application. Such tappings enable the tanks to be used with multiple return flow temperatures or multiple heat sources, such as renewables or low- and high-grade heaters.

The range includes buffer vessels with capacities from 500L to 10,000L. Adveco buffer vessels up to 5,000L are also available with the option of up to two internal heating coils for use with indirect heat sources. All tanks are rated to 5 bar working pressure and temperatures up to 95°C.

Adveco Ltd – Expertly Engineered For You

Design, supply and support for commercial hot water, heating and low carbon applications

Features and Key Technologies

  • 100mm flexible polyester insulation with removable PVC jacket for ease of installation.
  • Vertical tanks as system buffer vessels up to 10,000 litres.
  • Up to two internal heating coils available for vessels up to 5,000 litres.
  • Heating coils rated to 9 bar working pressure, suitable for use with glycol fluids for solar or heat pump installations.
  • Bespoke tanks and connections available upon request.

Specifications

MSS Carbon Steel Buffers tabs

View table as a PDF (69kb)

Model
Storage Capacity [l]
Primary Connection Sizes [in]
Vessel Dimensions (OD x H) [mm]
Optional Heating Coil Capacities [kW]
MSS 500, 501, 502
489
1.25
850  x 1700
Top: 12 / Bottom: 21
MSS 800, 801, 802
723
1.25
990 x 1740
Top: 15 / Bottom: 27
MSS 1000, 1001, 1002
1008
1.50
1050  x 2030
Top: 30 / Bottom: 40
MSS 1500, 1501, 1502
1449
1.50
1200 x 2120
Top: 35 / Bottom: 50
MSS 2000, 2001, 2002
2054
2.00
1300 x 2450
Top: 40 / Bottom: 50
MSS 2500, 2501, 2502
2328
3.00
1400 x 2635
Top: 42 / Bottom: 50
MSS 3000, 3001, 3002
2941
3.00
1450 x 2810
Top: 42 / Bottom: 60
MSS 4000, 4001, 4002
3796
3.00
1600 x 2900
Top: 50 / Bottom: 70
MSS 5000, 5001, 5002
5024
3.00
1800 x 2960
Top: 50 / Bottom: 70
MSS 6000
5854
3.00
2000 x 2790
Not available
MSS 8000
7636
3.00
2000 x 3490
Not available
MSS 10000
9544
3.00
2000 x 4240
Not available
