Introducing the FUSION range of electric water heaters

  • Expanded range of pre-sized, low-carbon electric water heaters (Fusion-E) and packaged renewable water heaters (FUSION-T)
  • A compact form factor that is quicker and easier to install and maintain
  • Rugged and highly resilient for use in both hard and soft water conditions
  • Up to 71% carbon emissions savings compared to equivalent gas systems

Commercial hot water specialist Adveco, announces the arrival of the next generation of FUSION packaged electric water heating for commercial projects. FUSION-E is a tough, high-efficiency electric water heater. FUSION-T extends the system with the addition of a system-integrated heat pump and advanced controls. Both ranges can be further expanded with the addition of an electric immersion for greater resilience (FUSION-Eplus and FUSION-Tplus).

Bill Sinclair, technical director, Adveco says: “FUSION is the perfect response for commercial building projects with small to medium basin and sink-led hot water demands. Taller buildings with basement plant rooms and businesses that depend on 24/7 hot water provision for continuity of service all gain advantages from FUSION as well as reducing carbon emissions and controlling costs.”

FUSION packaged systems start with all new specially designed single- (ATSI) or twin-coil (ATST) corrosion-resistant stainless steel high-pressure indirect cylinders. Offering capacities from 300 to 500 litres, the cylinders feature dedicated mounting points for Adveco’s ARDENT electric boiler. By mounting the fusion electric boiler directly to the cylinder FUSION is a more compact, space-saving option. Supplied with pre-built pipework the latest generation of FUSION is now faster and easier to install.

The electric boiler, with multiple immersions inside its sealed storage tank, provides automatically balanced usage to prolong system life and immediate resilience for the boiler.  Used in a sealed ‘primary’ loop, the electric boiler heats the same water continuously effectively eliminating limescale issues typically found in electric systems used in hard water areas.

For the FUSION-T renewable variants, the monobloc air-to-water FPi-32 heat pump (ASHP) is used as a source for system preheat. Contribution from the ASHP is maximised via the bespoke FUSION Control Box. These controls smartly balance the two heat sources, enabling the water in the cylinder to be heated in the most efficient way. As the electric boiler is not required to work as hard to raise flow temperatures to the 65°C demanded by commercial applications. Electrical demand on the boiler is reduced by as much as 30%, delivering operational savings and reducing carbon emissions by up to 71%.

Bill Sinclair, technical director, Adveco said: “This variant is perfect for organisations seeking to invest in a water heating application as part of a decarbonisation strategy without losing sight of higher operational costs associated with all-electric systems compared to equivalent gas-fired water heating.”

Where hot water demands become a business-critical service, FUSION packaged systems will also support the addition of an Adveco backup immersion providing additional resilience. Fitted into the front-facing clean-out access, the immersion ensures there is no single point of failure for assured service provision. When only used as an emergency heating source, or during periods of unplanned excess demand, the inclusion of an electric immersion can be extremely advantageous. For FUSION systems incorporating the additional backup immersion (FUSION FPH-Eplus & FPH-Tplus) controls are further extended to incorporate remote alerts to advise building managers of a fault scenario and automated engagement of the immersion back-up to guarantee business-critical hot water supply.

“For commercial organisations seeking a hot water system for new buildings faced with the regulatory changes on new gas connections or planning to move from existing gas-fired systems to electrical alternatives, FUSION provides an impressive range of choices,” says Bill. “Whether cost, sustainability or business security are the driving factors for specification, FUSION offers a comprehensive response that can be quickly matched to the requirements of your project.”

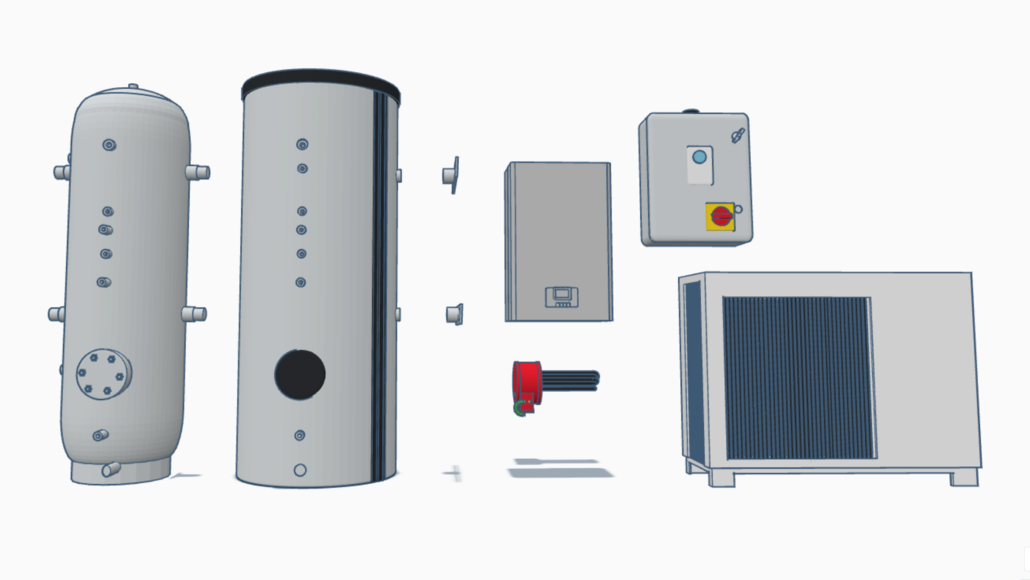

Key features

[av_image src=’https://adveco.co/wp-content/uploads/2023/06/FUSION-system-elements-cylinder-jacket-brackets-boiler-immersion-ASHP-controls-1030×580.jpg’ attachment=’312975′ attachment_size=’large’ copyright=” caption=” image_size=” styling=” box_shadow=’none’ box_shadow_width=’10’ box_shadow_color=” align=’center’ font_size=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ link=” target=” animation=’no-animation’ animation_duration=” animation_custom_bg_color=” animation_z_index_curtain=’100′ parallax_parallax=” parallax_parallax_speed=” av-desktop-parallax_parallax=” av-desktop-parallax_parallax_speed=” av-medium-parallax_parallax=” av-medium-parallax_parallax_speed=” av-small-parallax_parallax=” av-small-parallax_parallax_speed=” av-mini-parallax_parallax=” av-mini-parallax_parallax_speed=” hover=” blur_image=” grayscale_image=” fade_image=” appearance=” css_position=” css_position_location=’,,,’ css_position_z_index=” av-desktop-css_position=” av-desktop-css_position_location=’,,,’ av-desktop-css_position_z_index=” av-medium-css_position=” av-medium-css_position_location=’,,,’ av-medium-css_position_z_index=” av-small-css_position=” av-small-css_position_location=’,,,’ av-small-css_position_z_index=” av-mini-css_position=” av-mini-css_position_location=’,,,’ av-mini-css_position_z_index=” transform_perspective=” transform_rotation=’,,,’ transform_scale=’,,’ transform_skew=’,’ transform_translate=’,,’ av-desktop-transform_perspective=” av-desktop-transform_rotation=’,,,’ av-desktop-transform_scale=’,,’ av-desktop-transform_skew=’,’ av-desktop-transform_translate=’,,’ av-medium-transform_perspective=” av-medium-transform_rotation=’,,,’ av-medium-transform_scale=’,,’ av-medium-transform_skew=’,’ av-medium-transform_translate=’,,’ av-small-transform_perspective=” av-small-transform_rotation=’,,,’ av-small-transform_scale=’,,’ av-small-transform_skew=’,’ av-small-transform_translate=’,,’ av-mini-transform_perspective=” av-mini-transform_rotation=’,,,’ av-mini-transform_scale=’,,’ av-mini-transform_skew=’,’ av-mini-transform_translate=’,,’ mask_overlay=” mask_overlay_shape=’blob’ mask_overlay_size=’contain’ mask_overlay_scale=’100%’ mask_overlay_position=’center center’ mask_overlay_repeat=’no-repeat’ mask_overlay_rotate=” mask_overlay_rad_shape=’circle’ mask_overlay_rad_position=’center center’ mask_overlay_opacity1=’0′ mask_overlay_opacity2=’1′ mask_overlay_opacity3=” title_attr=” alt_attr=” img_scrset=” lazy_loading=’disabled’ id=” custom_class=” template_class=” av_element_hidden_in_editor=’0′ av_uid=’av-6euf33j’ sc_version=’1.0′ admin_preview_bg=”][/av_image]

FUSION-E

  • High-quality ATSI single coil stainless steel vessel with mounting points & brackets
  • Available with 300 or 400-litre capacities
  • Cylinder pressure 10 bar as standard
  • 9, 12 or 24 kW electric boiler
  • Pre-built pipework (left or right)
  • Thermostat and overheat thermostat
  • Compact space-saving form factor
  • Six pre-sized variants from 9 to 24 kW

FUSION-Eplus

  • 6 kW electric immersion
  • FUSION Control Box & remote alerts
  • Six pre-sized variants from 9 to 24 kW

FUSION-T

  • High-quality ATST twin coil stainless steel vessel with mounting points & brackets
  • Available with 300, 400 or 500-litre capacities
  • Cylinder pressure 10 bar as standard
  • 9, 12 or 24 kW electric boiler
  • 6 or 12 kW air source heat pump
  • Pre-built pipework (left or right)
  • Thermostat, overheat thermostat & FUSION Control Box
  • Compact space-saving form factor
  • 15 pre-sized variants from 15 to 36 kW

FUSION-Tplus

  • 6 kW electric immersion
  • Immersion controls with remote alerts
  • 15 pre-sized variants from 15 to 36 kW
